Kaiman

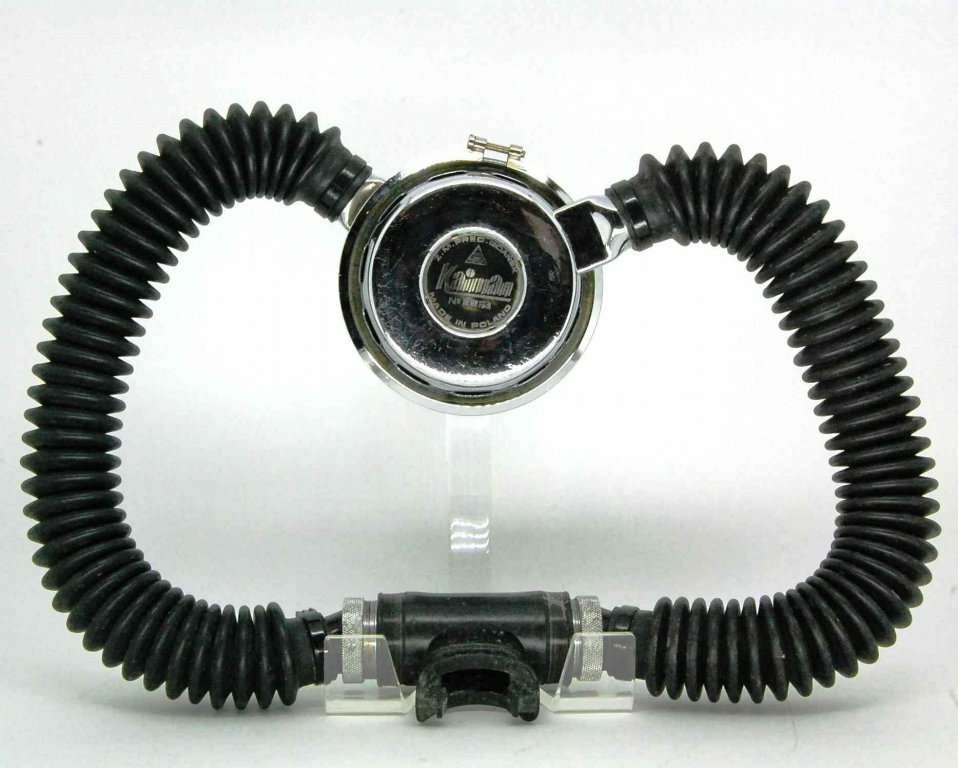

The Kaiman (Kajman) R-7 double hose regulator was manufactored from 1969 to 1978 by Precision Engineering Works – Gdansk in Poland.

Zaklad Mechaniki Precyzyjnej (ZMP) – Precision Enginieering Works – Gdansk – a manufacturer from Poland, among others has produced analytical and technical balance, diving breathing apparatus, knitting machines, magnetic compasses. The plant was founded in 1952 as a “Student” cooperative.

In 1954, the company was moved to Oliwa on street Beniowskiego 5, where the production of highly-valued analytical balances has been launched in Poland and worldwide.

According to Dziennik Baltycki (local newspaper in Pomerania, Poland), in 1965, 40% of production was exported to 30 countries, which was the only one in Gdansk plant selected for export production.

They were incorporated as ZMP “Mera-Wag” to unite the producers of mathematical (and later digital) Mera machines.

ZMP “Mera-Wag” was liquidated at the end of 1980, when the license of a prosperous company was sold to the Federal Republic of Germany, creating a Unit of Precision Mechanics “Unitra-Magmor” producing electronics devices (computer printers, reel-to-reel tape recorders licensed by Grundig, cassette tape recorders of their own design, car radio recorders, etc).

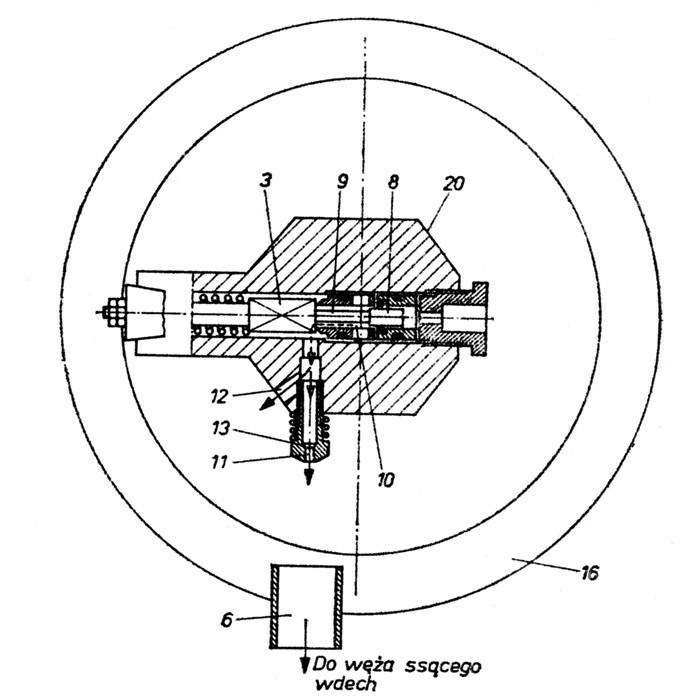

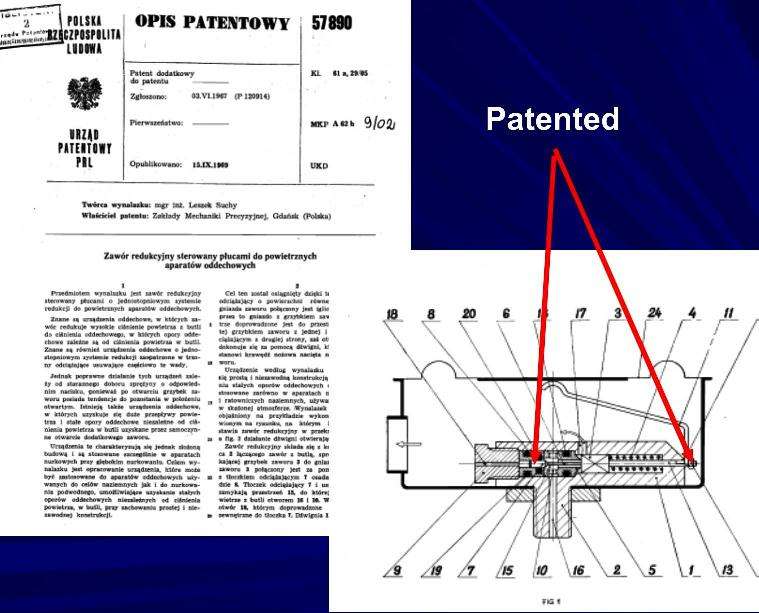

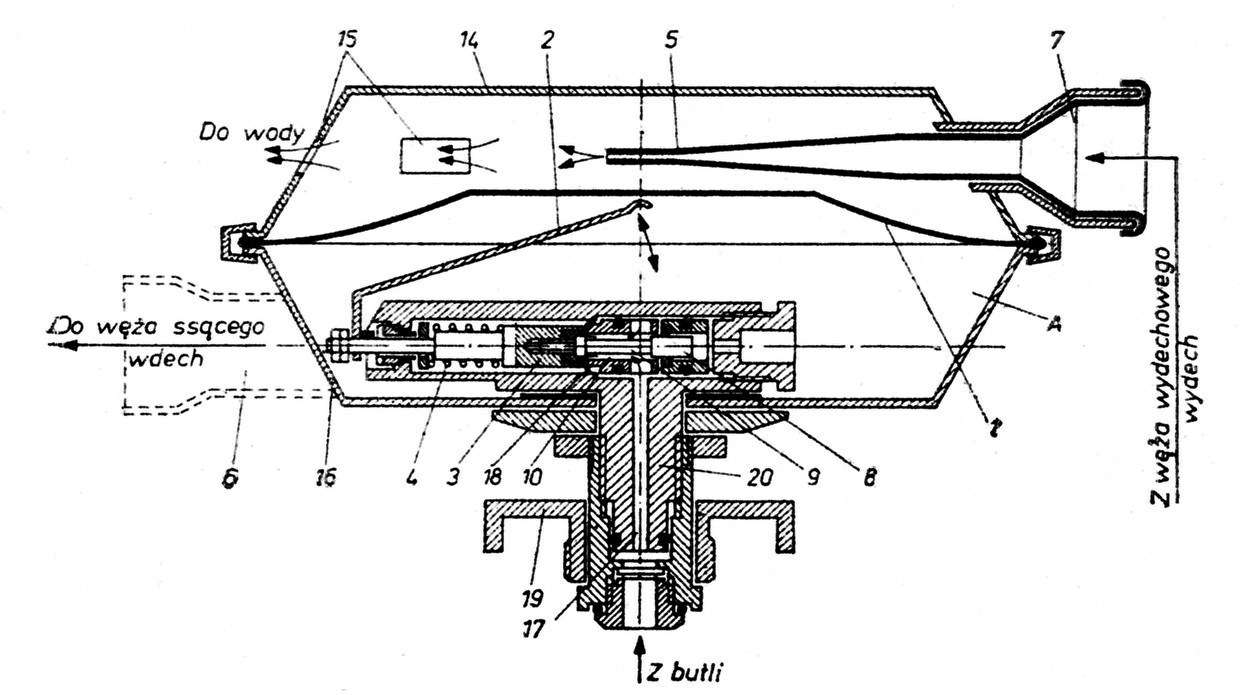

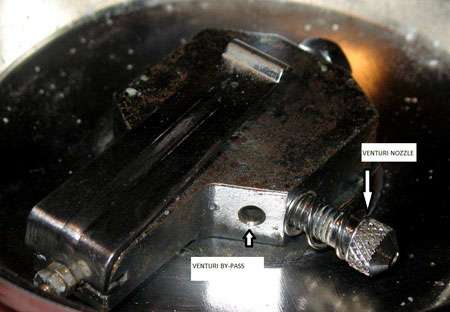

Kaiman is a single stage regulator and was designed by Leszek Suchy. It has a balanced pressure control system with adjustable Venturi nozzle.

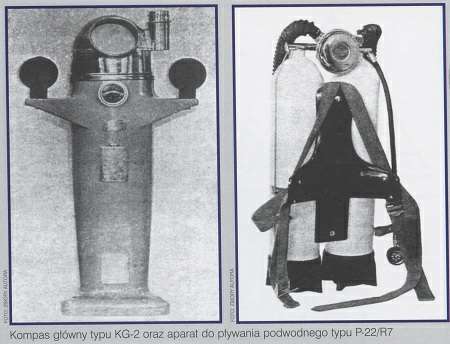

The set was part of a P-22 (2 x 8liter cylinders – 150 Bar) diving equipment.

It is a single stage dowstream regulator. The weight is 650g with DIN R5/8″ and 24mm diameter hoses.

Reference

• Wieslaw Wachowski – www.hds.poland.org
• Peter Johnson – March 2010
• http://www.nurkomania.pl/nurkowanie_automat_oddechowy_kajman.htm
• http://www.dawnaoliwa.pl/opisy/firmy/zmp.html
